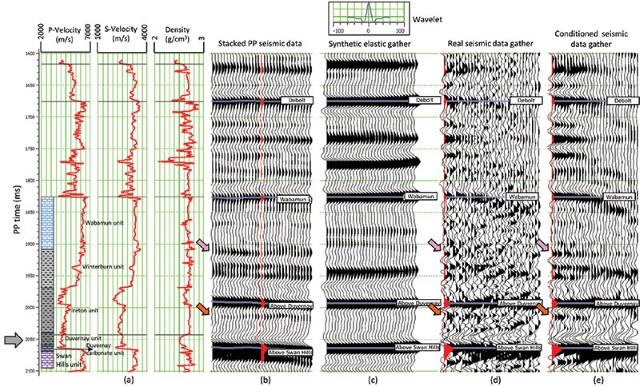

Figure 3: The P-velocity, S-velocity and density curves measured in a well are shown in (a), and are seen correlated with PP seismic data in (b). A synthetic elastic gather generated from the three curves is shown in (c). A real seismic PP gather at the location of the well is shown in (d). This data has not been conditioned for any amplitude analysis. The conditioned version of the gather in (d) is shown in (e). It is interesting to note the differences as indicated with the pink and orange arrows. Also, the stacked data and the prestack data correlation shows the similarities and differences that are open to interpretation.
