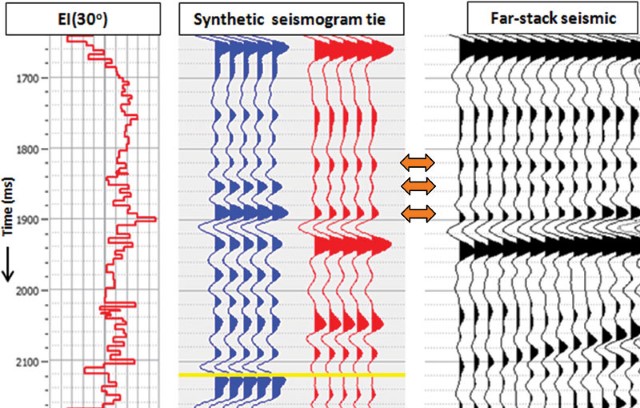

Figure 3 – Synthetic seismogram tie for the high-angle (~30o) far-stack. The synthetic seismogram was generated by using the computed EI(30o) log curve. The correlation seems to be reasonably good. Notice the weakening of the amplitudes at the location of the orange arrows. (Data courtesy: PetroNorte, Colombia)
