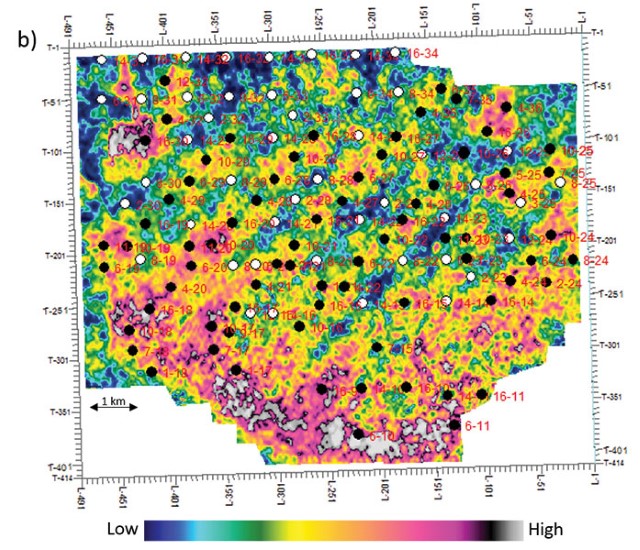

Figure 3b – Equivalent stratal slices at the Cardium sand level from the P-impedance volume generated using PP-PS post-stack joint inversion. The white circles denote the injection wells and the black circles show the production wells.
