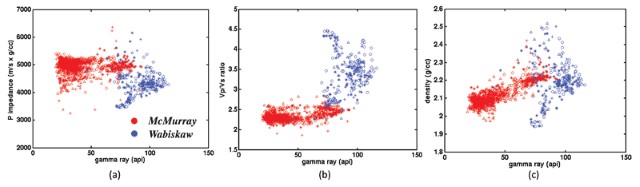

Figure 1 – Cross-plots of gamma-ray versus (a) P-impedance, (b) Vp/Vs velocity ratios and (c) density. Red samples are from the McMurray formation and blue samples are from the Wabiskaw formation. Note that bulk density and gamma-ray responses (c) increase in a quasi-linear manner.
