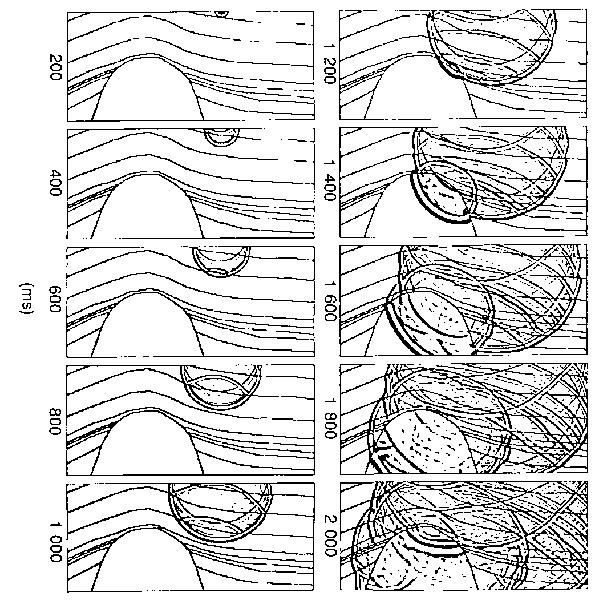

Figure 1 A series of model snapshots of an expanding seismic wavefield at 200 ms time intervals for a surface seismic source above a salt dome model. The figure is from a paper by Dan Whitmore and Larry Lines (1986 Geophysics, v. 51, 1,087-1,109), and is used with the authors' permission.
