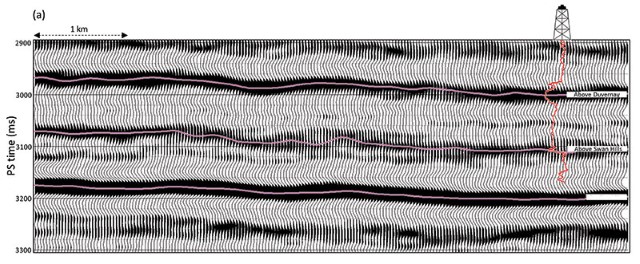

Segment of a (a) PS-wave seismic section from the Kaybob area in northwest Alberta, Canada, and an equivalent section from (b) spectrally balanced PS wave data volume. Notice the lower frequency content (< 25Hz) before has been enhanced with the frequency enhancement process. The bland zones within the marked horizons seen in (a) show more reflection events which seem to correlate with the impedance log curve overlaid on both sections.
