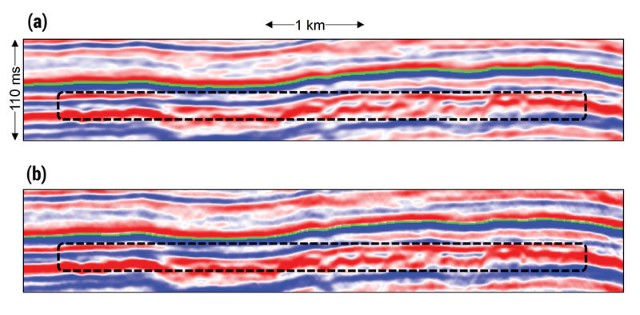

Figure 2 – Vertical slice corresponding to the blue dotted line shown in figure 3 through seismic amplitude volumes generated using 5-D interpolation generated from 5-D interpolated data at (a) nominal 20 m by 20 m and (b) finer 10 m by 10 m bin size. Black box indicates channels delineated by coherence in figure 3.
