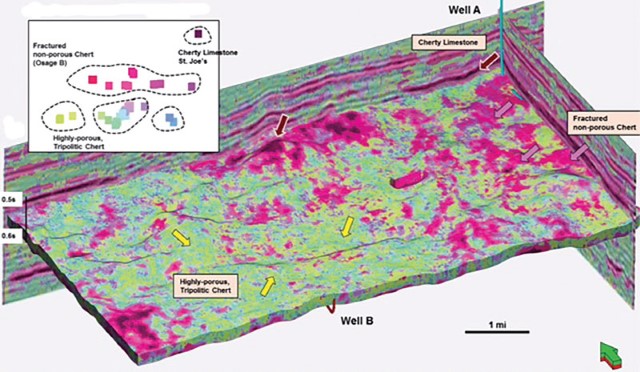

Result of multi-attribute unsupervised seismic-facies classification within the Mississippian limestone using texture-attribute volumes. Dark red and brown correlate to the tight cherty limestone (indicated by the brown arrows), light pink and violet correlate to the layered chert and limestone (indicated by the pink arrows), and light green and yellow correlate to tripolitic chert (indicated by the yellow arrow). Courtesy of ConocoPhillips School of Geology and Geophysics.
